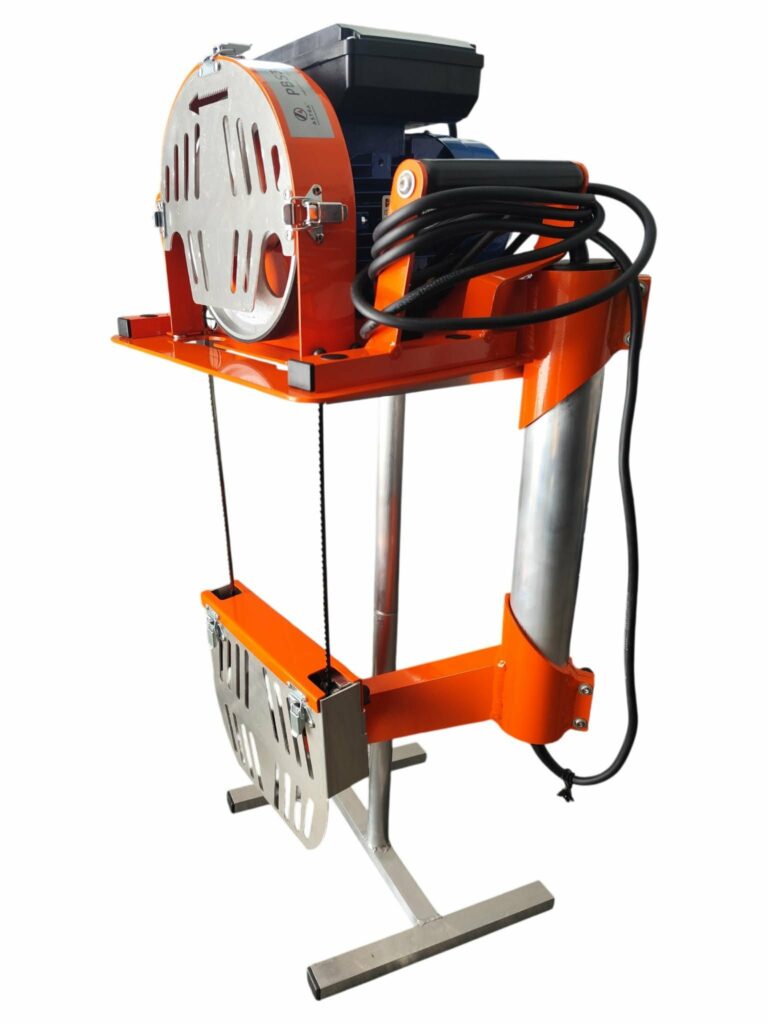

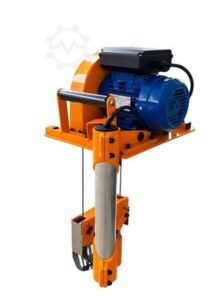

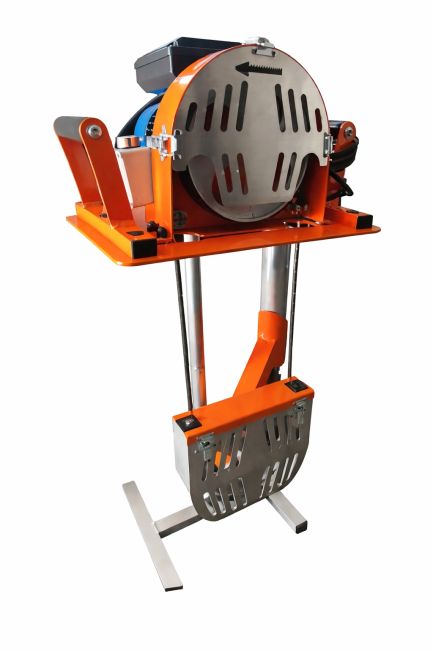

PBS300 TITAN | PORTABLE BANDSAW
INDUSTRIAL POWER, CRAFT PRECISION
Built to endure the demands of both the construction site and the artisan studio, the PBS300 TITAN offers unmatched versatility. It delivers consistent, vibration-free performance, making it as capable of handling heavy structural loads as it is at executing delicate, precision-based tasks.
The machine supports blades from 6 to 13 mm wide, enabling both precise radius cutting and powerful straight cuts in thick timber. The PBS300 maintains a constant cutting accuracy of 0.2 – 0.5 mm across all supported blade widths. The precision is engineered into the machine’s rigid frame, ensuring industrial-grade performance regardless of the blade size selected.
PREMIUM QUALITY. UNBEATABLE PRICE.
The synergy of refined engineering and smart design guarantees industrial-grade cutting quality alongside low maintenance costs. Through optimized manufacturing processes, we deliver a premium product at a price point previously unseen on the global market.
TECHNICAL SPECIFICATIONS
ENGINEERING & DESIGN
| Category | Parameter | Specification |
| CUTTING SYSTEM | Max. Cutting Height | 300 mm |
| Band Wheel Diameter | 203 mm | |
| Blade Length | 1710 mm | |
| Blade Width Range | 6 – 13 mm | |
| Guide Table Size | 420 × 310 mm | |
| Blade Guide System | Hybrid (Steel Guides + Bearings) | |
| DRIVE SYSTEM | Motor Type | Industrial Asynchronous |
| Power Output | 0.75 kW (1HP) | |
| Rated Speed | 1420 RPM | |
| Voltage / Frequency | 230V/110V (50-60 Hz) | |
| Protection Class | IP54 | |
| CONSTRUCTION | Frame Material | Welded Aluminium |
| Band Wheels | Precision-Machined Cast Aluminium | |
| Power Cable Length | 4 m | |
| Net Weight | 19 kg |
Key mechanical solutions engineered for stable cutting and reliable timber processing.
STABLE POWER PERFORMANCE (DIRECT DRIVE SYSTEM):
The power is transferred directly from the motor to the drive wheel. This configuration ensures maximum torque efficiency, eliminates energy loss, and maintains mechanical simplicity for long-term reliability.

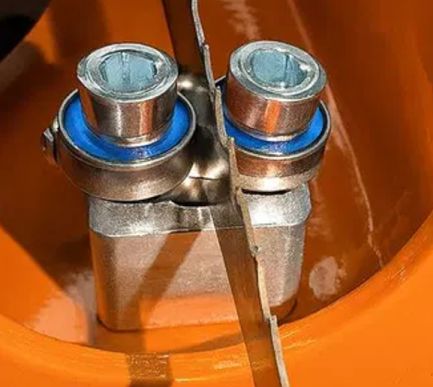

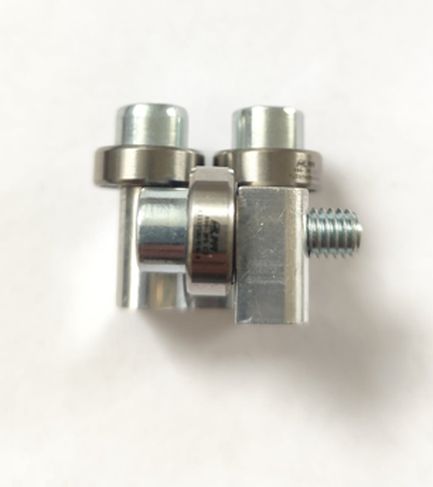

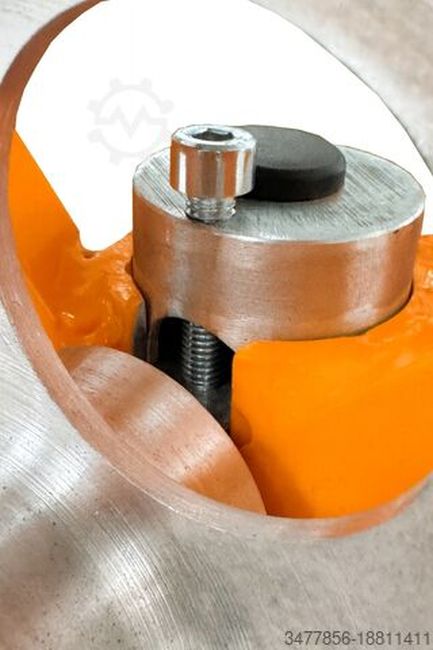

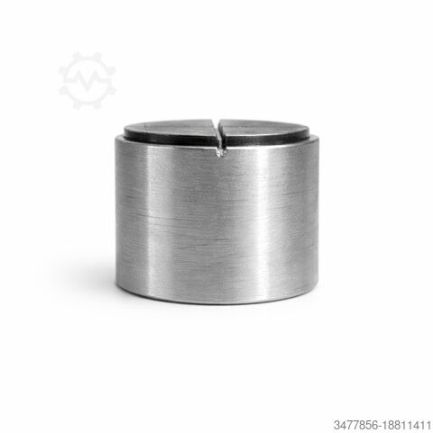

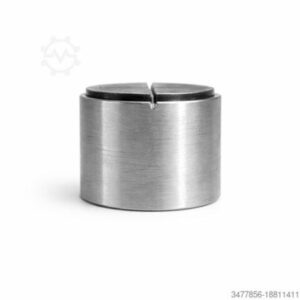

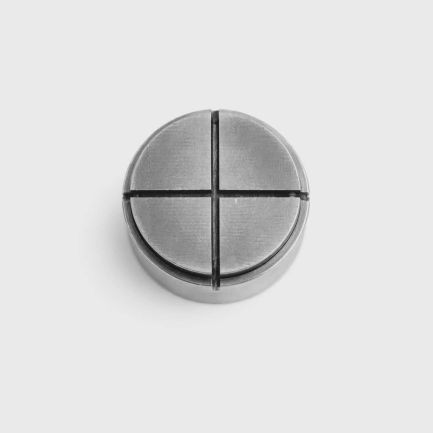

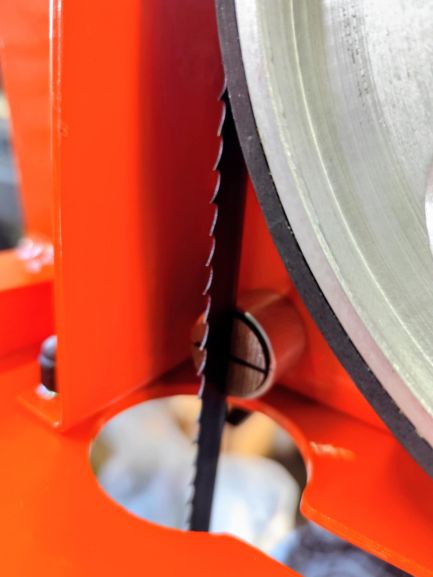

CUTTING STABILITY (HYBRID BLADE GUIDE SYSTEM):

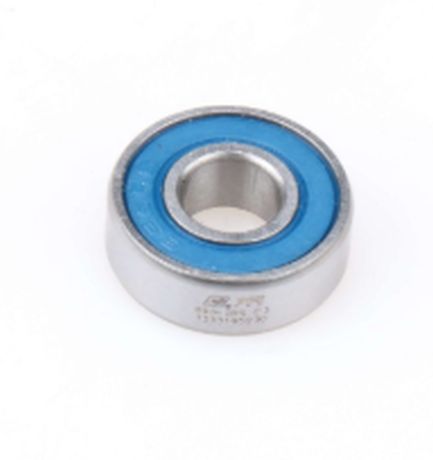

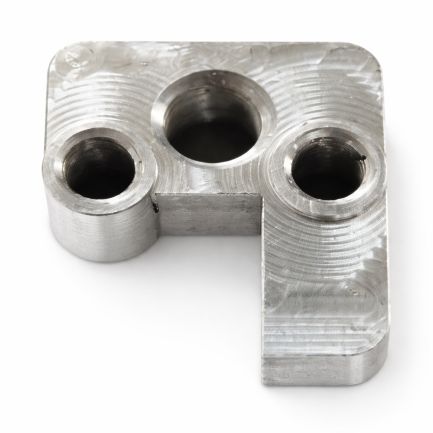

Our proprietary system combines hardened steel guide elements with precision ball bearings. This hybrid approach minimizes blade deflection and vibration, significantly improving cutting accuracy while extending the operational life of the blade.

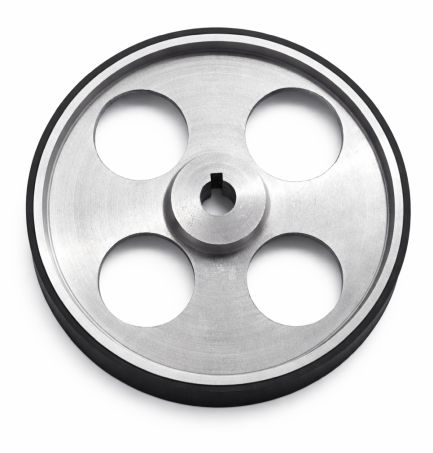

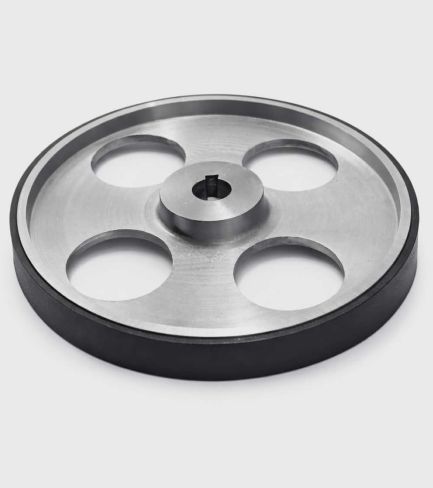

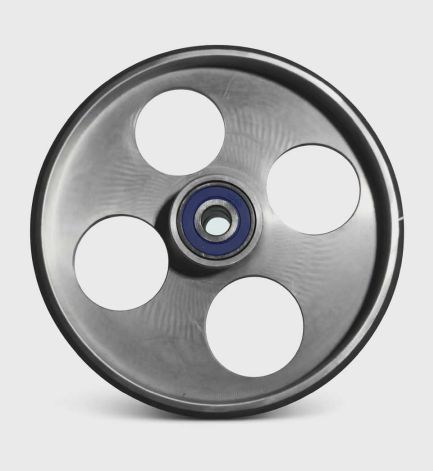

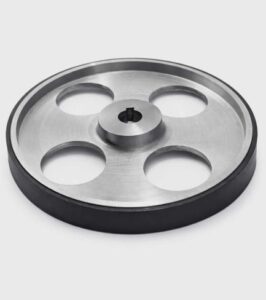

SMOOTH SYSTEM DYNAMICS (MACHINED ALUMINUM DRIVE WHEELS):
The drive wheels are precision-machined from high-grade aluminum to ensure perfect balance. Their balanced design reduces vibration, providing smooth and controlled blade movement even during high-load processing of dense timber.
STRUCTURAL RIGIDITY (TIG-WELDED ALUMINUM FRAME):
Constructed from heavy-duty, thick-wall aluminum profiles, the frame is TIG-welded for maximum structural integrity. This ensures the machine remains perfectly rigid under tension while maintaining the lightweight characteristics (19 kg) essential for portability.
PERFORMANCE
Note on Capacity: The following demonstrations showcase the PBS300 TITAN operating at its maximum structural capacity. By seeing how the machine handles heavy beams, you can easily visualize the effortless speed and pinpoint precision it delivers when working with thinner dimensions.
300×300 mm beam in just 25 seconds. The PBS300 TITAN handles maximum loads with zero power drop.
By utilizing a direct drive system, the machine maintains 100% of its cutting efficiency even when the blade is fully buried in 300 mm of solid timber.
This is about more than just speed — it is about uninterrupted cutting momentum. The tool ensures a steady, fluid feed that prevents blade binding and delivers a perfectly clean, vertical finish every time.
While the final cutting speed and precision also depend on the operator’s skill, the PBS300 TITAN is designed for maximum ease of use. Thanks to its intuitive handling and exceptional frame stability, even users with no prior bandsaw experience can quickly master the technique and become true „cutting virtuosos”.
Extreme Precision in Large-Scale Timber.
In this demonstration, the PBS300 TITAN showcases its exceptional maneuverability. Using a narrow 6 mm blade, the machine carves a perfect 70 mm diameter circle through a massive 300 mm thick beam.
This test proves that the TITAN isn’t just about raw power—it’s about fine control. Even at maximum cutting height, the blade remains perfectly vertical, allowing for intricate, curved joinery in heavy structural timber.
Technical Highlights:
- Maneuverability: The 6 mm blade allows for tight-radius cuts without binding.
- Vertical Stability: The hybrid guide system keeps the thin blade stabilized throughout the entire 300 mm depth.
- Effortless Control: Minimal physical effort is required to guide the saw, even when following complex lines.
Whether you are a master craftsman or a beginner, the intuitive design of the PBS300 TITAN helps you achieve professional results from day one.
This video demonstrates the real-world operational capabilities of the PBS300 TITAN portable bandsaw during the processing of raw timber at a height of 300 mm. The footage highlights the blade-guiding stability and the efficiency of the power transmission system under maximum structural load.
Structural Rigidity: Note the absence of frame vibration despite operating at maximum extension. The TITAN’s rigid construction eliminates „blade wandering,” which is critical for maintaining dimensional repeatability and consistency.
Engineered for simplicity, the PBS300 TITAN is remarkably easy to operate. Users of all skill levels can get up to speed quickly and achieve professional results without the need for extensive training.
Precision is never an accident—it is the result of rigorous engineering. This video showcases the PBS300 TITAN delivering a perfect geometry on a 280 mm timber profile.
Whether you are executing a single bespoke project or operating on a large industrial scale, the PBS300 TITAN adapts to your workflow. When properly configured and guided, this machine ensures uncompromising accuracy in any environment:
- Absolute Linearity: Eliminate „blade wander.” Our rigid guidance system maintains a perfectly straight kerf across the entire cutting height.
- Consistency Under Pressure: Designed to perform identically in a controlled workshop or the demanding conditions of a construction site.
- Industrial Throughput: Built for continuous operation, ensuring that the first cut of the day is as precise as the last.
The Professional Edge
The PBS300 TITAN proves that mobility no longer requires sacrificing the accuracy of stationary industrial machinery.

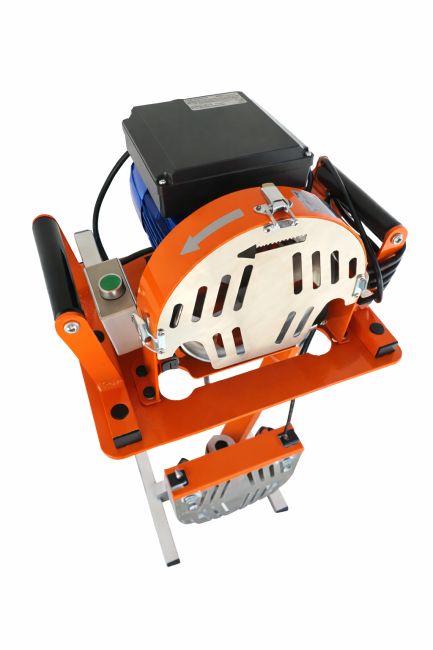

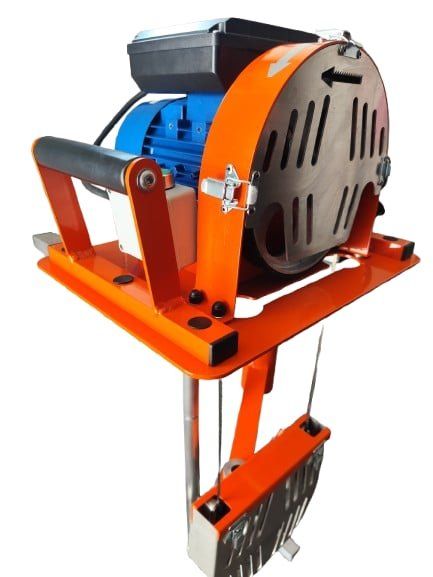

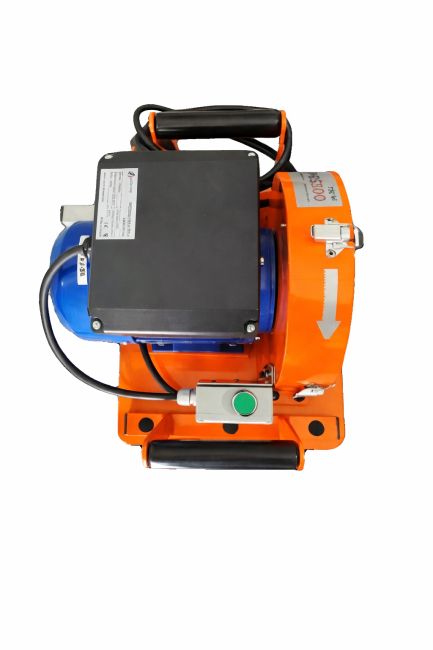

PHOTOS
COMMERCIAL TERMS
- Free EU Delivery: Complimentary shipping across the EU via GLS courier.
- Non-EU Export: Costs calculated individually (Bosnia, Serbia, CH, NO, UK, etc.)
- Fast Dispatch: Orders are processed and shipped within 3 business days.

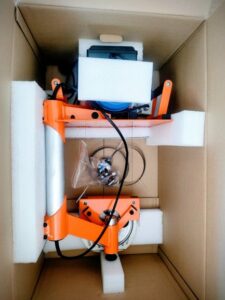

- Secured Packaging: Pre-set and secured in a reinforced industrial crate for safe transit.
- Official Invoice: All sales are documented with a formal VAT Invoice.
- EU B2B (0% VAT): For companies with a valid EU VAT number. Verify here: VIES Search.
- Individual Buyers: Local VAT rate will be added to the net price for non-business EU residents.
- Export (Non-EU): 0% VAT (Tax-Free Export). Local customs duties are the buyer’s responsibility.
- Payment Methods: Secure Bank Transfer, Revolut Business, PayPal.
- Factory Warranty: 36-month comprehensive direct factory warranty included.
- 100% Made in Europe: Engineered and manufactured in the EU to strict industrial standards.

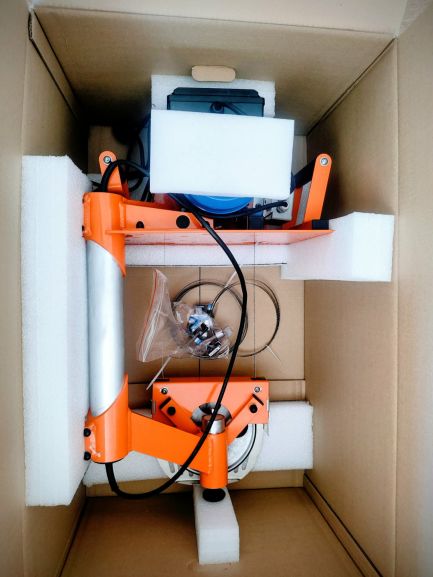

PBS300 TITAN Starter Set
EAN (GTIN): 5908069679500The standard in portable bandsaw technology for heavy-duty timber applications.
All prices in EUR Currency / NET- PBS300 TITAN Unit: Professional 300mm cutting capacity.
- 2x 6 mm Blades: Specialized for precision curves.

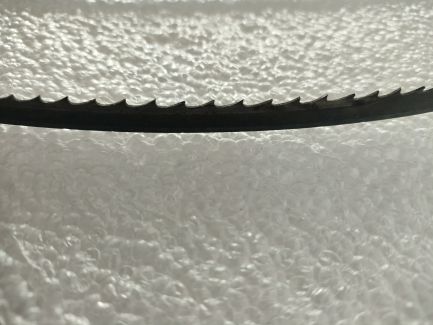

- 1x 10 mm Blade: High-stability structural cutting.
- Free EU Delivery: Insured GLS shipping for all European Union countries.
- 0% VAT Export: Applies to all non-EU European countries (Bosnia, Serbia, Switzerland, Norway, UK, Albania, etc.). Shipping quoted individually.
